VDO Atomic Dot WRM

MARTIN

30 €

Prix unitaire HT / Jour

Le Martin VDO Atomic Dot WRM est un projecteur hybride ultra-compact combinant blinder, strobe, pixel vidéo et mini-spot, avec aura rétroéclairée pilotable en P3/DMX/Art-Net/sACN, idéal pour créer des matrices dynamiques et des effets visuels percutants en concert, TV, événementiel et clubbing.

Accessoires, coupleurs, alimentations, raccords en option.

Catégories : ,

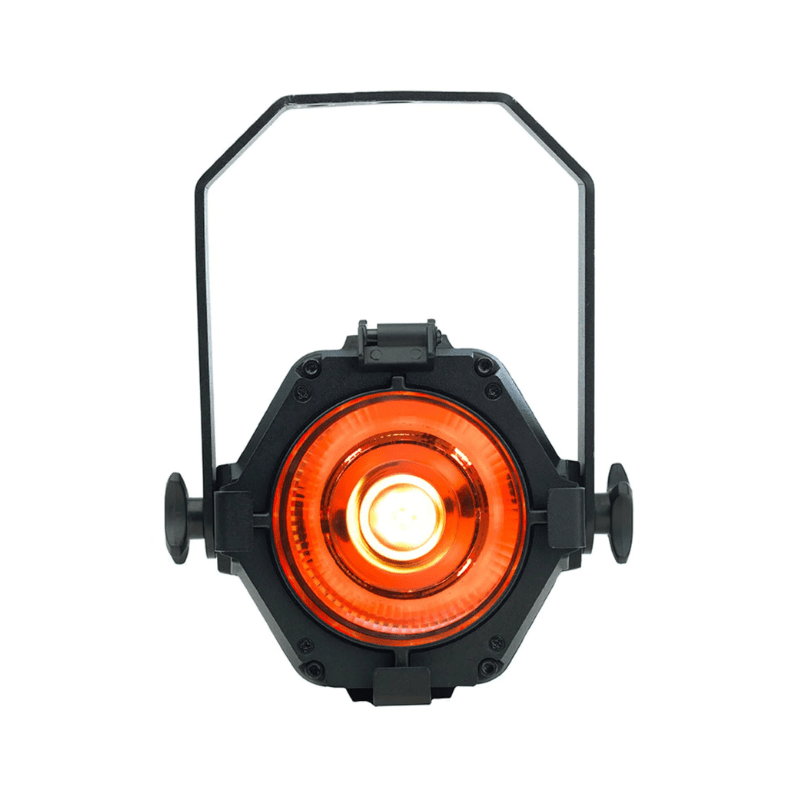

VDO Atomic Dot WRM

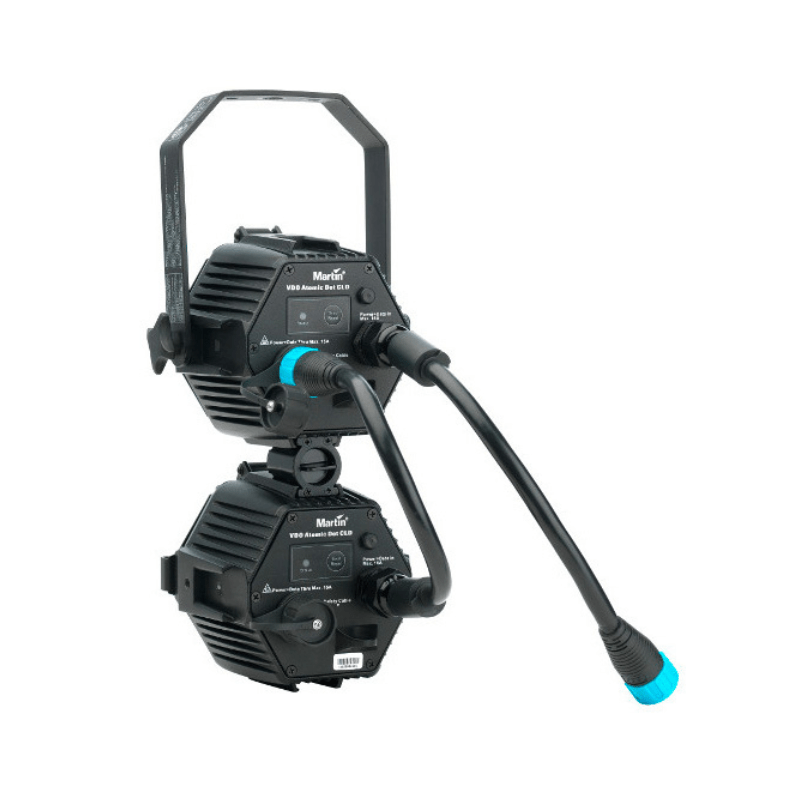

VDO Atomic Dot WRM – Image 2
VDO Atomic Dot WRM – Image 3
VDO Atomic Dot WRM – Image 4

Autres informations

Physical

Width excluding hanging bracket: 130 mm (5.1 in.)
Width including hanging bracket: 175 mm (6.9 in.)
Height excluding hanging bracket: 134 mm (5.3 in.)
Height including hanging bracket: 242 mm (9.5 in.)
Horizontal fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)
Vertical fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)
Depth: 146 mm (5.7 in.)
Weight including hanging bracket: 2.2 kg (4.85 lbs.)
Weight excluding hanging bracket: 2.0 kg (4.41 lbs.)

Dynamic Effects

Beam Dimmer/Shutter: 0 – 100% continuous dimming, variable flash rate and duration, and atomic effects
Beam Dimming options: Choice of four dimming curves
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects
Aura Dimming options: Choice of four dimming curves
Aura Color mixing: RGB, independently variable 0 – 100%
Aura Color temperature control: Variable 2000 – 11,000 K
Aura Virtual Color wheel: 36 color presets, continuous rotation & random color
Aura PixelMapping: individual RGB control of each Aura pixel
Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Built-in FX: Various pre-programmed FX on Beam, Aura and combination of both

Control and ProgrammingControl Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3Protocol detection: AutomaticSetting and addressing: RDM, RDM over Art-Net or P3DMX Modes: 1-channel, 3-channel, 4-channel, Basic, ExtendedDMX channels: 1, 3, 4, 19, 64Fixture Identification: User-settable ID numberDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-NetsACN Compliance: ANSI E1.31 – 2016Martin P3 Compliance: P3 System Controller Software 5.1.0 or newerDMX/RDM Transceiver: RS-485Ethernet Transceiver: 10/100MbitFirmware update: via DMX using Martin Companion or via Ethernet using P3 System Controller
P3 Video ProcessingColor Resolution: 16 bit per color (48 bit per pixel) (Aura)Color Temperature Control: 2000-11,000 K (Aura)Synchronization: System-wideFrame Rate: Up to 75 frames/secBrightness Control: 0-100% (maintaining full color depth)Color Gamut Control: full spectrum control (Aura)Gamma Correction and Control: fully controllable (Aura)
Control/User InterfaceDevice status: Multi-color status LEDDevice test and reset: Pushbutton to call up local test patterns and reset device

Optics and Photometric Data

Lens Diameter: 95 mm
Front Accessory Holder: PAR30 size

Beam/Strobe LED
LED Type: Warm White
Max. total lumen output: 2850 lumens (boost/strobe mode)
Max. total lumen output: 1400 lumens (continuous mode)
Beam Angle: 11 Degrees (half peak)
Field Angle: 22 Degrees (one-tenth peak)
Binning: Tight color and flux binning
Color Temperature: 2700 K
CRI (Color Rendering Index): ≥ 84
Resolution: 16-bit
Minimum LED lifetime: 50,000 hours (to >70% luminous output)

Aura Backlight LEDs
LED Type: RGB
LED Quantity: 16
Binning: Tight color and flux binning
Color Temperature: Variable (2000-11,000 K)
Resolution: 16-bit per color per pixel
Minimum LED lifetime: 50,000 hours (to >70% luminous output)

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

ConstructionHousing: AluminumColor: BlackProtection rating: IP65
Poids 2 kg
Dimensions 17,5 × 13,4 × 24,2 cm
