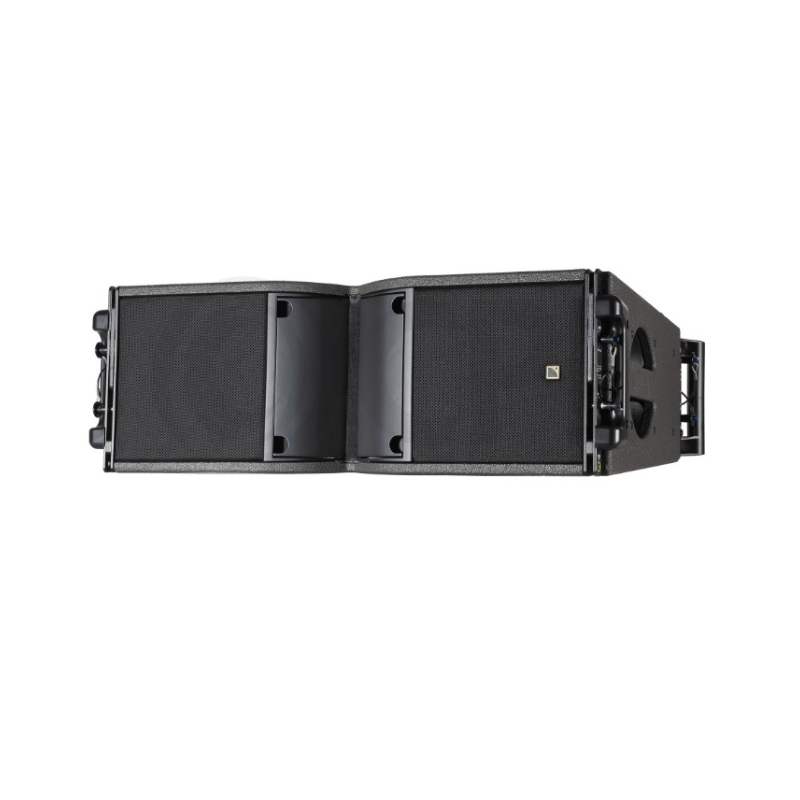

L-Acoustics – Kara II
Description
2-way active WST enclosure, amplified by LA4X / LA8 / LA12X
Usable bandwidth (-10 dB)
55 Hz – 20 kHz ([KARA II 70])
Maximum SPL1
142 dB ([KARA II 70])
Nominal directivity (-6 dB)

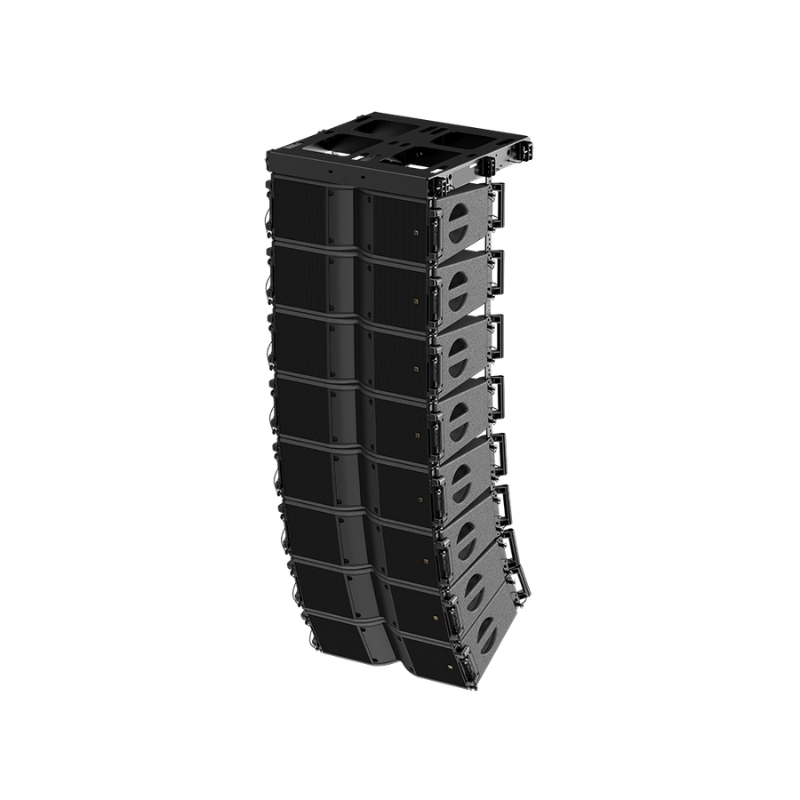

Vertical : depending on number of elements and array curvature
Horizontal : 70° / 110° symmetric or 90° asymmetric
Transducers
LF: 2 × 8’’ neodymium cone driver
HF: 1 × 3’’ neodymium diaphragm compression driver
Acoustical load
LF: Bass-reflex
HF: DOSC waveguide, Panflex
Nominal impedance
LF: 8 Ω
HF: 8 Ω
Connectors
IN: 1 × 4-point speakON
LINK: 1 × 4-point speakON
Rigging and handling
4-point captive rigging system
2 side handles, 2 rear handles
Inter-enclosure angles [deg]: 0, 1, 2, 3, 4, 5, 7.5, 10
Weight (net)
26 kg / 57 lb
Cabinet
Premium grade Baltic birch plywood
Front
Coated steel grill
Acoustically neutral 3D fabric
Rigging components
High grade steel with anti-corrosion coating
Finish
Dark grey brown Pantone 426 C
IP
IP55
1- Peak level at 1 m under free field conditions
